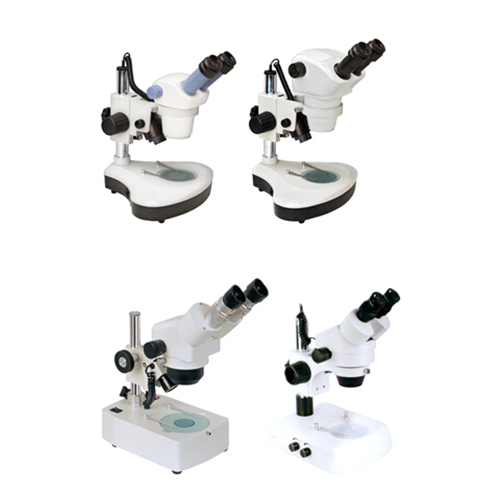

Zoom stereomicroscope

Product ID: SM-NTB Series

Features:

SM-NTB series zoom stereomicroscope supply up-right and sharp image with high resolutionIt is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.



Specifications





SM-NTB-5A

SM-NTB-6A

SM-NTB-2B

SM-NTB-4B

Viewing Body

Binocular viewing microscope   body

Trinocular viewing   microscope body

Eyepiece

WF5×




WF10×



WF15×

WF20×

WF30×



EW10×



Zoom Objective

0.7×-4.5×




0.8×-5×




1×-4×




1×-4.5×




Auxiliary Objective

0.5×

0.63×




0.7×




0.75×



1.5×



Zoom Ratio

1: 4




1: 4.5




1: 6.3




1: 6.5




Working Distance

82mm




97mm




100mm




115mm




Transmitted Light

6V/ 20W Halogen Lamp



12V/ 10W Halogen Lamp




12V/ 15W Halogen Lamp




Incident Light

6V/ 15W Halogen lamp with reflector



12V/ 10W Halogen lamp with   reflector




12V/ 15W Halogen lamp with   reflector




Photo Attachment


Video Attachment




Note : Standard Outfit, Optional
