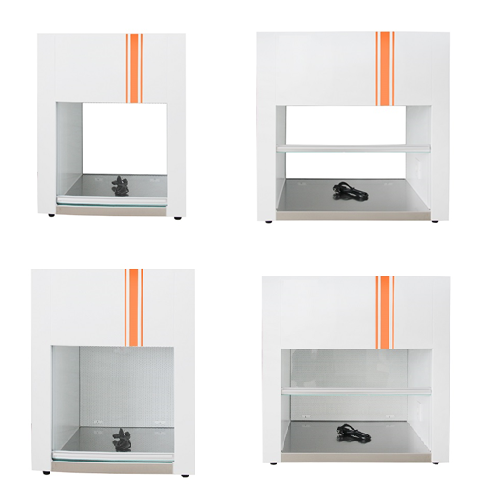

Biological safety cabinet

Product ID: SC- LBC-series

Application Range:

Biological safety cabinet is indispensable equipment for modern microorganism lab, especially for those occasions that the operators need to take protective measure, such as medicine, pharmacy, microbiology, biomedicine, gene recombination, animal experiment and biological products. It can provide a sterile clean and safe environment.



Structural Characteristics:

1.       SC-LBC-IIA2 constant air emissions by 30%, SC-LBC-IIB2 constant air emissions by 100%, negative pressure vertical laminar flow.

2.       Moving up / down glass door, flexible positioned, and can completely shut down for sterilization, alarm prompt.

3.       High efficiency filters to filter particles, dust and microorganism in the airtwo layers of filter for more than 99.9999% of the HEPA filter membrane

4.       Using high quality 304 stainless steelcan prevent the corrosion and erosion of disinfectants.

5.       Equipped with an alert function for high efficiency filter failure

6.       The alarm for air leakage in workspace.



Technical Parameters:

 Model

SC-LBC-1000II A2

SC- LBC-1000IIB2

SC-LBC-1300II A2

     SC- LBC-1300IIB2

SC-LBC-1600II A2

SC- LBC-1600IIB2

Clean level

ISO 5(Class 100)/ISO 4(Class 10)

HEPA Filter Efficiency

@0.3~0.12µm≥99.999% ~ 99.995%

Downflow Air Velocity

0.25m/s~0.5m/s

Inflow Air Velocity

≥0.5m/s

Noise

≤60dB(A)

Vibration Half Peak

≤5µm

Electric Power

AC, Single-phase 220V/50Hz(AC,220V,1,50Hz)

Laminar Flow Protection

Operation Protection (Repeat 3 times)

aTotal colony in   impaction sampler≤10CFU/time

bTotal colony in impaction   sampler≤5CFU/time

Sample Protection (Repeat 3 times)

Total colony in culture dish≤5CFU/time

Protection Against Cross-Contamination (Repeat 3 times)

Total colony in culture dish≤2CFU/time

Maximum Power

≤1500KVA (with spare socket)

Weight(kg)

150

200

250

Operation Room Dimension(mm)

1000×570×635

1300×570×635

1600×570×635

Overall Dimension(mm)

1200×855×2350

1500×855×2350

1800×795×2350

Fluorescent Lighting Dimension & Quantity

30W× (2)

40W× (2)

40W× (2)

UV Lighting Dimension & Quantity

20W× (1)

30W× (1)

40W× (1)

Luminance

              ≥650Lx

Exhaust Pipe’s Diameter

Φ200

Φ250

Exhaust Direction

Ejection(A2)
