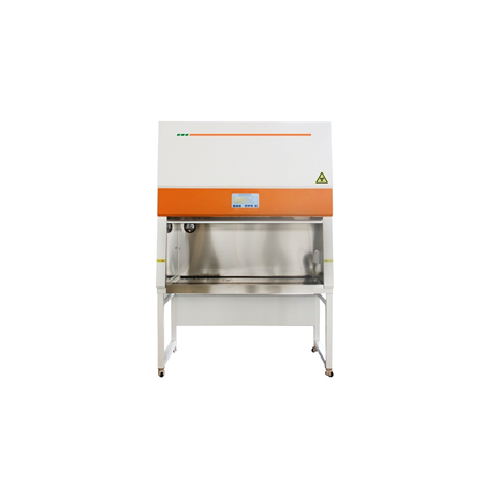

Biological Safety Cabinet

Product ID:

Product features

1. Air curtain isolation design prevents internal and external cross-contamination, 30% of the air flow is discharged outside and 70% of the internal circulation, negative pressure vertical laminar flow, no need to install pipes.

2. The glass door can be moved up and down, can be positioned arbitrarily, is easy to operate, and can be completely closed for sterilization, and the positioning height limit alarm prompts.

3. The power output socket in the work area is equipped with a waterproof socket and a sewage interface to provide great convenience for the operator

4 A special filter is installed at the exhaust air to control emission pollution.

5. The working environment is made of high-quality 304 stainless steel, which is smooth, seamless, and has no dead ends. It can be easily and thoroughly disinfected and can prevent the erosion of corrosive agents and disinfectants.

6. It adopts LED LCD panel control and built-in UV lamp protection device, which can only be opened when the safety door is closed.

7. With DOP detection port, built-in differential pressure gauge.

8, 10° tilt angle, in line with the human body design concept



                     Model

Parameter

BSC-1000IIA2

BSC-1000IIA2

BSC-1300IIA2

BSC-1600IIA2

Airflow system

70% air recirculation, 30% air exhaust

Cleanliness grade

Class 100@≥0.5μm (U.S. Federal 209E)

Number of colonies

≤0.5pcs/dish·hour (Φ90mm culture plate)

Average wind speed

Inside the door

0.38±0.025m/s

Middle

0.26±0.025m/s

Inside

0.27±0.025m/s

Front suction air speed

0.55m±0.025m/s (30% air exhaust)

Noise

≤65dB(A)

Vibration half peak

≤3μm

Power supply

AC single phase 220V/50Hz

Maximum power consumption

400W

500W

600W

700W

Weight

170KG

210KG

250KG

270KG

Internal Size (mm)        W×D×H

840×700×600

1040×650×620

1340×650×620

1640×650×620

External Size (mm)         W×D×H

1000×800×2100

1200×800×2100

1500×800×2100

1800×800×2100

High efficiency filter specification and   quantity

780×490×50×①

520×380×70×①

980×490×50×1

520×380×70×1

1280×490×50×1

820×380×70×1

1580×490×50×1

1120×380×70×1

Specification and quantity of fluorescent   lamp/UV lamp

12W×①/20W×①

20W×2/20W×1

30W×2/30W×1

30W×2/30W×1
