FT-IR Spectrometer

Instrument introduction

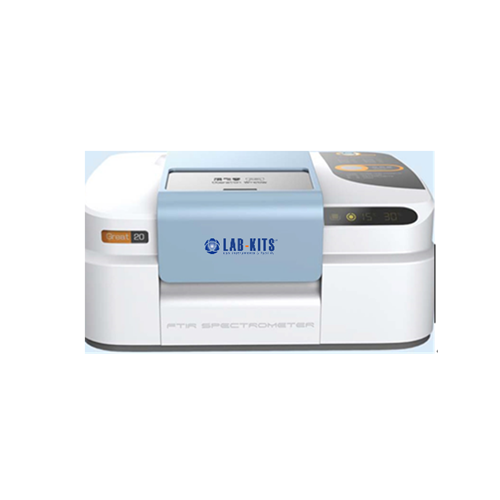

The FT680 Fourier Transform Infrared Spectrometer is a product developed by U-THERM Instruments Manufacture Co., Ltd. It has the characteristics of convenient installation, simple use, and convenient maintenance. It is an indispensable spectral analysis instrument in the fields of material science, biomedicine, petrochemical, food safety, and other industries. At the same time, it is also a necessary laboratory analysis instrument for colleges and universities, research institutes, and other institutions. Since its listing, it has occupied the leading position in the domestic market and won the support and trust of the majority of users.

Working principle

Using the working principle of interferometer interference frequency modulation, the light emitted by the light source is converted into interference light through the Michelson interferometer,

and then the interference light irradiates the sample. The receiver receives the interference light with the sample information, and then the spectrum of the sample can be obtained through Fourier transform by computer software.

Instrument features

1.The interferometer uses DSP to control the electromagnetic drive Michelson interferometer, which has continuous dynamic adjustment function, automatically optimizes the system energy, without manual adjustment.

2.The optical compensation technology of three-dimensional right-angle gold-plated mirror is adopted, and the fixed mirror is constant without mechanical dynamic adjustment, and the optical path is permanently collimated.

3.The electronic system of Super Tech digital technology. Fully digital, output digital signal. 24-bit, 500KHz A/D conversion, high-speed USB interface, real-time spectral data acquisition, ensuring the authenticity and reliability of the data.

4.Silicon carbide rod infrared light source with electronic voltage stabilizing power supply technology adopts digital power supply technology to provide stable and reliable power supply support for the light source and ensure that the light source has an ultra-long service life.

5.High sensitivity DLATGS receiver with polymer moisture-proof membrane.

6.KBr substrate multi-layer germanium plated beam splitter, and other reliable moisture-proof materials such as ZnSe and KRS-5 can be selected.

7.The instrument is equipped with an industrial temperature and humidity display screen, which can directly display the internal temperature and humidity and humidity alarm value of the instrument in digital real-time. When the internal humidity alarm value is reached, a beep alarm will be sent to prevent the core components of the instrument from being damaged due to deliquescence.

8.The window, detector and beam splitter are coated with special coating, which has ultra­ high transmittance and can also reduce the corrosion of moisture to potassium bromide.

9.Excellent optical mirror design: the optical mirror adopts the overall SPOT cutting process to ensure the high reflection efficiency of the mirror and the consistency of the optical system.

10.With powerful expansion function, it can connect transmission accessories, attenuated total reflection accessories (ATR accessories), diffuse reflection accessories, plane reflection accessories, original Accessories, etc.

11.Intelligent human-computer interactive operation guidance design, whether you have contact with Fourier infrared software or not, you can quickly operate and skillfully use it.

12.Spectrum library: It can provide a variety of professional infrared spectrum libraries, covering various industries and meeting the requirements of conventional retrieval, users can also User-defined new spectrum library for retrieval, flexible and convenient. The atlas library includes: national pharmacopoeia atlas library, national veterinary pharmacopoeia atlas library, rubber atlas Graph library, gas graph library, polymer graph library, protein and amino acid graph library, judicial graph library (dangerous goods, chemicals, drugs, etc.) inorganic spectrum library, organic spectrum library, solvent spectrum library, food additive spectrum library, essence flavor spectrum library, paint spectrum Library, etc.

Specifications

Spectral range: 7800-350cm^-1

Resolution: Better than 1.0cm^-1

Signal-to-noise ratio: 30000:1 (P-P value, 4cm-1, 1min scan)

Wave number accuracy: Better than 0.01cm^-1

Transmission accuracy: Better than 0.05, t%

Interferometer: Non-orthogonal Michelson interferometer

Data transmission interface: High-speed USB2.0 (compatible with USB3.0)

Power supply:100V-240V, 50/60Hz broadband power supply

Compatible operating system: Windows XP, Windows Vista, Windows7, 8, 10, 11

Sample bin size:190*160mm

Instrument size:450 X 350 X 210mm

Weight:14kg

Usual Optional Parts

Znse Crystal ATR

Used for testing solids with low hardness, such as rubber, plastic, asphalt, resin, etc. suitable for testing ordinary liquids or non strong acids and bases (pH 5-9)

Press

Manual hydraulic pressure, 0-24 tons, no oil leakage, no pressure drop. The base is relatively stable and will not roll over during the pressing process. We can provide larger tonnage Tablet press according to the needs of customers.

Sheet Mold

Press the powder into a window in order to test. Diameter 13mm, thickness 0. 1-0.5mm, without demoulding.

Agate mortar

Grand solid sample into powder Diameter 70mm

KBr spectral purity

Potassium bromide single crystal raw material grown by the pulling method, with spectral purity and no interference from impurity peaks, is used for solid sample grinding and sample preparation. NaCl, KCl spectral purity optional

Gas pool

Used for analyzing infrared absorption spectra of conventional gases, with optical paths of 100mm or 50mm, and window panels made of various materials such as KBr, ZnSe, NaCl, CaF2, etc.

Detachable liquid tank

KBr window plates are usually used for qualitative or quantitative analysis of liquids. Multiple materials such as ZnSe, NaCl, CaF2 are available for selection

Fixed liquid pool

KBr window plates are usually used for qualitative or quantitative analysis of liquids. Multiple materials such as ZnSe, NaCl, CaF2 can be selected for fixed liquid tanks

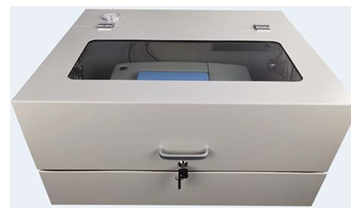

Intelligent electronic moisture-proof cabinet

Using various dehumidification technology to effectively reduce the humidity in the cabinet, so as to achieve the purpose of moisture-proof, mildew proof and oxidation proof.
