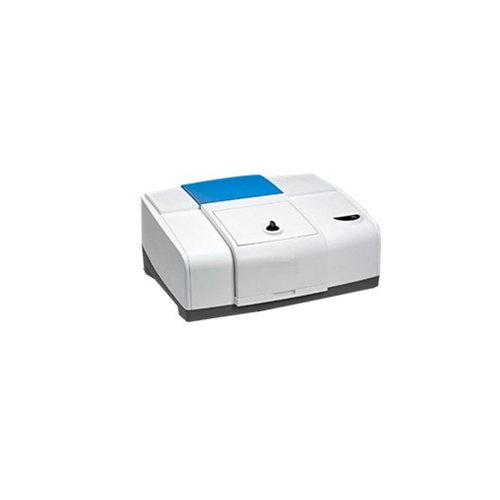

FTIR Spectrometer

Features:

Highly stable optical system

Optical platform integrated design, with overall form of mold, the main component use needle positioning, without adjustment, greatly increasing the stability of the instrument. Completely solve the traditional optical structure is not easy to maintain and so on.

High-performance electronic systems

The latest 24-bit A / D converter, 500KHz A / D conversion speed, configuration imported high sensitivity DLATGS detector, truly real-time spectral data acquisition to ensure the authenticity and reliability of the data. With the latest USB2.0 communication interface, improve the data transfer rate, complete test for a sample just need a few seconds.

Humanized humidity protection design

Closed type interferometer design, quick humidity condition recognition, reduce the workload of operators of equipment maintenance, with obvious color change to alert users to timely replacement of desiccant, solve the greatest hazard to the infrared in use process. Don't need to open lid when replace desiccant.

Ultra-light weight design

Only weights 16Kg, easy to move the instrument in different locations in the laboratory to operate a test, and targeted to solve the problem for female operators because the instrument is too heavy to move around.

Technical Parameters:

Spectral range: 4000--400cm^-1/7800--350cm^-1

Resolution: 1.5cm^-1/1.0cm^-1

Detector: High sensitivity DLATGS detector

Beam splitter: KBr substrate plated germanium

Scan speed: Under the control of the computer to select the appropriate scanning speed

Light source: Long life high strength air cooled infrared light source

Signal-noise ratio: 15000:1/30000:1(P-P value, 4cm^-1,1 minute background and sample scan, 2100cm^-1)

Power supply: AC220V,50Hz

Dimensions: 450mm × 350mm × 210mm

Weight: 16Kg

Data transmission interface: USB2.0

Support system: Windows XP, Windows Vista, Windows 7, Windows 8
