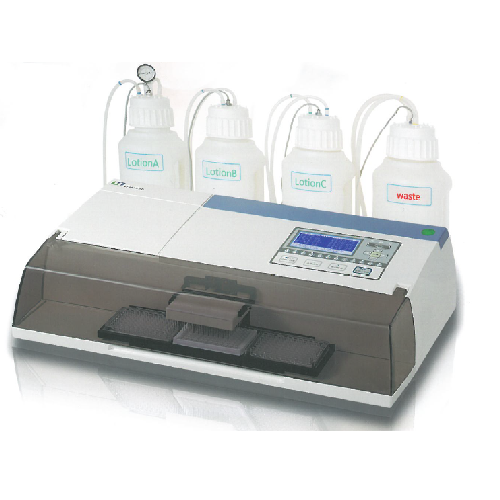

INTELLIGENT MICROPLATE WASHER

Product ID:HW3096

Features

1.Microcomputer control, 5. 1-inch LCD display, all wash information are displayed in a screen

2. Humanized menu, Humanized-machine interaction mode, convenient operation and no need of training

3. Traffic Thomas vacuum pump, large flow, and ensure the cleaning effect.

4. Patent technology 2-tray design improves the efficiency of plate washing availably. According to different workload setting single, double plate, three plate and circulating

5. Apply to multiple ELISA Plate, such as plain, U, V and round type

6. Start and Shutdown automatically flushing maintenance procedures, avoid crystallization caused by plugging holes

7. The lotion can automatically switch. Lotion lack and liquid waste fully automatic alarm

8. A touchtone election strip switch can adopt single row washing, combined rows washing and the whole plate washing to meet different needs free fill hole

9. Patented technology automatically pressure regulator device, automatically adjust the number of articles according to the wash

10. Have the function of vibrating plate and soaking, the time is adjustable

11. Have the functions of washing the base and three-point inhaling the liquid. Ensure the low amount of residue that the washing effect is better

12. Automatically emissions when waste liquid full (optional)

13. There is a design of 2 plate incubation position with inner-circulation wind shower, (optional)

14 Incubation time can be adjusted between 0-900minutes. (optional)

15 The design of the transparent shield in the area of washing can screen the noise, prevent the spilling and spatter, and guarantee the safety.

16 Four patent technology



Specification:

1. The head of washer: 96 pin 12x 8(8 x 12 optional)

2. Residual Volume: <0.8ul/well

3. Dispense precision: CV<1.5%

4. Dispense Volume: 50-5000ul adjustable

5. Washing mode: Single, double, third and cycle

6. Washer strip: 1-12, row and rank, selectable

7.Washing times: 0-900 second adjustable

8. Imbibition time: 0-900S

9. Soaking time: 0-9000S

10. Vibration time: 0-9000s

1. Memory: up to 100 programs

12. Incubation: 4 plates wind circulation incubation (optional)

13.Temperature:25-45±5 (optional)

14. Incubation time: 0-90mins adjustable (optional)

15.Wash bottle: four 4L

16. Waste from the row: Waste liquid full automatic discharge (optional)

17. Interface: Serial port RS-232
