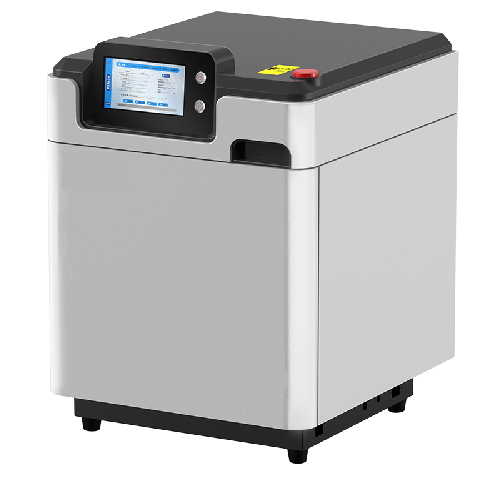

Microwave digestion system (Touch Screen, 6/8/10/12 vessels)

Product ID: MWD-610

Optional vessel quantity, up to 12 vessels to meet different digestion requirements

Vertical design for even distribution of microwave

Real-time monitoring for both temperature and pressure of each vessel.

Contactless sensor monitoring with no burst disk design saves consumable cost and maintenance cost

Imported vessel material for both sample vessel and protection vessel highly ensures safety.

7-inch color Touch screen with user-friendly interface for easy operation.

Imported CFRP outer shell material with high strength ensures impact resistance.

Pre-installed international standard methods while user can also edit, save, modify and delete own methods.

316L stainless steel cavity with multilayer Teflon coating avoids acid corrosion, also improves cooling efficiency.

Pre-installed general standard methods, users can also create, save, modify and delete the method.

Technical specification

Model	MWD-610-T6	MWD-610-T8	MWD-610-T10	MWD-610-T12
Vessel Quantity	6 vessels	8 vessels	10 vessels	12 vessels
Temperature Monitoring System	Temperature Monitoring: Contactless IR Sensor; Scan monitoring for Each Vessel Temperature Controlling Range: 50~400℃ Temperature Accuracy: ±0.1℃ Display Accuracy: ±0.1℃
vessel volume	100 ml
Pressure Monitoring System	Temperature Monitoring: Contactless Sensor; Scan monitoring for Each Vessel Pressure Controlling Range: 0~15MPa Pressure Accuracy: ±0.01MPa Display Accuracy: ±0.01Mpa
Sample Vessel Material	Imported TFM
Protection Vessel Material	Peek+Glass Fiber
Display	7-inch Touch Screen
Rotation	360° continuous rotating
Microwave Tank	316L stainless steel tank with corrosion-proof coating
Microwave Power	0-1000W (Adjustable)
Microwave Leakage	<5mw/cm2
Air Exhaust	High power corrosion-proof air blower
Power	AC 220V±10%, 10A, 50/60Hz
Dimension	490×560×630mm（L×W×H）
Weight	47KG
