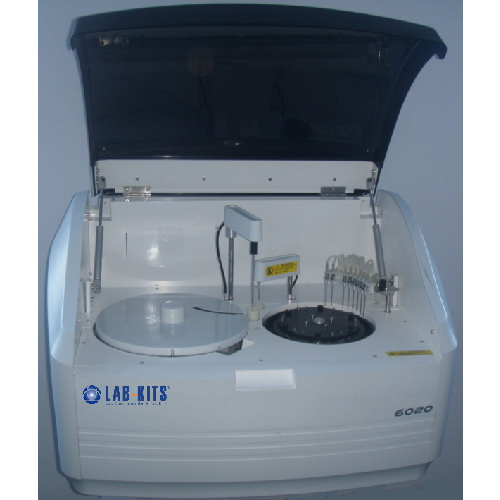

Automatic Biochemistry Analyzer

System Functions
Type: Fully Automated, Random Access Biochemistry Analyzer
Throughput; 200 tests/hour, up to 280 tests/hour with ISE (optional)
Test Mode: End point, Kinetics, Fixed time, Immunoturbidimetry
Monochromatic, Bi-chromatic & Multi-standard Analysis Linearity & Nonlinearity Calibration

Single & Dual reagents can be used
Test Setting: Programmable for single-parameter, multi-parameter, combined parameter, batch test
est Range: Clinical Biochemistry, Turbidimetry, ISE, Protein, Drug abuse
Parameter Setting: Completely open for editing test parameters and calculation parameters
Sample System
Sample/ Tray: 44 sample positions for primary tubes, test tubes and various sample cups
Whole sample tray can be removed and replaced
Any position can be aligned as the emergency test position
Sample Volume:3ul~30ul, programmed by 0.1μl step
Sample Handling: Dilute and retest automatically when sample’s concentration beyond limitation
Sample probe: Liquid level detection and collision protection
Probe cleaning: Automatic washing for both inside and outside, carry over <o. 1%
Syringe: High performance syringe, durable and maintenance free
Optional item Bar code reader
Reagent System
Reagent tray: 44 positions for Single & Dual reagents, reagent positions can be aligned freely

Refrigeration: Refrigerated reagent compartment, 24 hours non-stop cooling with Peltier element maintaining temperature 4-15℃

Reagent bottle volume: 35ml and 20ml, Slope bottom design

Reagent volume: 150ul-300ul, programmed by 0.1ul step

Reagent probe: Automatic liquid level detection function and collision protection

Reagent pre-heating function, inventory checking

Real time monitoring of reagent residual volume and auto alarm

Probe cleaning: Automatic washing for both inside and outside, carry over<o.1%

Reaction System

Reaction tray:48 reaction cuvettes with 6mm optical path, good UV penetrability, low consumable, low cost

Reaction technology: Back-Dividing-Light Technology

Reaction volume: 250ul—300ul

Temperature: 37℃, with+0. 1℃ fluctuation

Mixing system Independent mixer

Cleaning: Automatic cuvettes cleaning and complete drainage to reduce carry over

Water consumption: 5L/hour

Liquid detection: Detergent distilled water, waste liquid automatic detection and alarm

Optical System

Light source: Halogen lamp 6V/10W, life span ≥3000 hours

Wavelength: 340nm, 405nm, 450nm, 492nm, 505nm, 546nm, 578nm, 620nm, 670nm, 700nm

Wavelength accuracy: ±2nm

Detector: Photoelectron Diode Array

Absorbance range: 0. 000 Abs~3.000 Abs

Calibration mode: Linda Control

Calibration & Quality control

Calibration mode: Linear (one-point, two-point and multi-point), Logit-Log4P, Logit-Log5P,

Spline, Exponential, Polynomial, Parabola

QC rules: Westgard Multi-rule

QC mode: Intra day & Inter day QC

Operating System

Computer: Windows 2000 System or above

Data management: Large capacity for results and reaction curves to be displayed, saved and printed

Report: Edit and print complete reports, format editable, support network printing

Port: RS-232

Working Conditions

Power:220V±22V,50/60Hz±1Hz

Power consumption: ≤400VA

Environmental temperature: 15℃-30℃

Humidity: ≤85%

Dimension:760(L)×560(W)×1018(H)mm

Weight: ≥85Kgs
