Coagulation analyzer

General Features

Parameters: PT, APTT, TT, FIB, etc.

Principle: Clotting, optical method

Disposable cuvette, no carry-over

Precise electronic pipette

Micro sample volume

Automatic start at reagent addition

Thermal printer, auto &manual print

Support LIS

Technical specifications

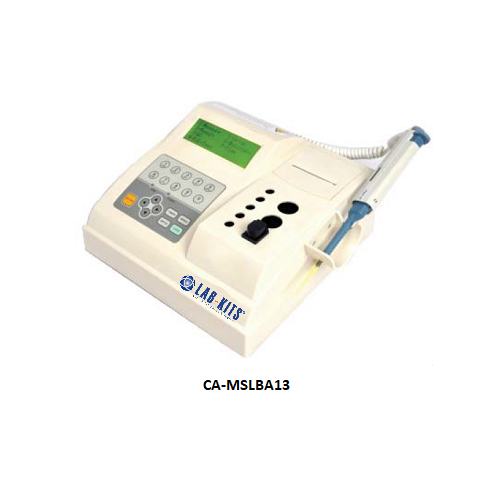

Testing channel: CA-MSLBA13:1

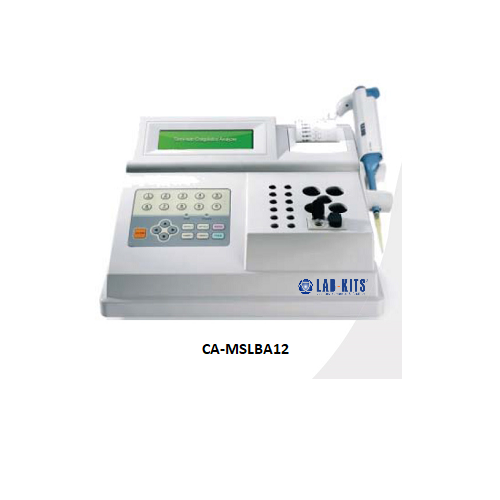

              CA-MSLBA12:2

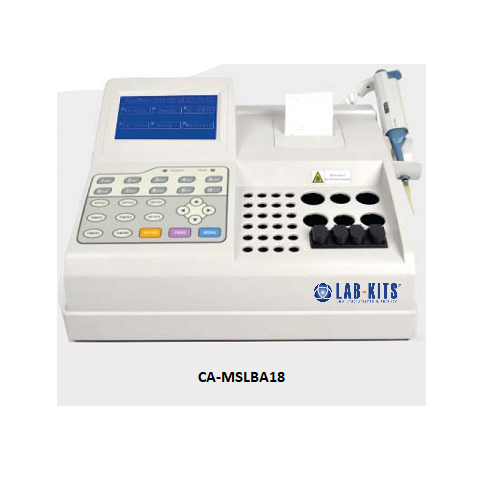

              CA-MSLBA18:4

Display: CA-MSLBA13: 4.3-inch screen

       CA-MSLBA12/18: 5-inch screen

Cuvette incubation positions: CA-MSLBA13:5

                        CA-MSLBA12:12

                        CA-MSLBA18:24

Reagent incubation positions: CA-MSLBA13:2

                        CA-MSLBA12:5

                        CA-MSLBA18:6

Wavelength: LED 470nm

Sample type: Plasma

Memory: 10,000 results storage

Sample volume: 20-40ul

Reagent volume: 20-40ul

Electronic pipette: 20-200ul

Available dimensions: Seconds, ratio, %, g/L

Incubation temperature: 37.0±1.0℃

Relative humidity: ≤85%

Precision: PT, APTT, FIB≤5%；TT≤8%

        (Normal sample)

Deviation between channels: ≤5%

Power supply: AC 100-240V 50/60Hz

Net weight: CA-MSLBA12:2.1kg

          CA-MSLBA13:4.5kg

          CA-MSLBA12:5.2kg

CE marks
