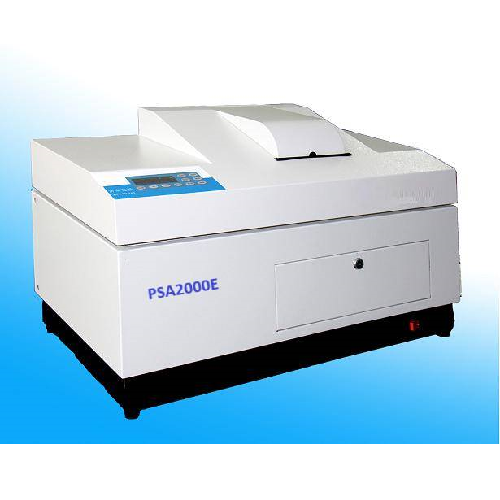

Wet Laser Particle Size Analyzer


As highly efficient-cost model, PSA2000E laser particle size analyzer with wet dispersion is most economical and popular since launched, after more than ten years of tests and numerous technical improvements, the structure and software are very mature, stable performance, it could meet industrial testing general requirements.


1, Main Specification:

Model   Name



ISO13320-1:1999,   GB/T19077.1-2008, Q/JWN001-2009

Measuring Range


Channels Number

39 PCS

Accuracy error

<1% (National   Standard Sample D50)

Repeatability error

<1% (National   Standard Sample D50)

Light source

High performance   He-Ne Laser (λ= 632.8nm, P>2MW)






Frequency:40KHz   Power:50W, Time: ≥1S


Revolutions Speed:   0-300RPM (Adjustable)


Rated   Flow:8L/min    Rated Power:10W

Sample Pool



Sample Pool

Volume: 10mL (Available)

Operation Mode

Display   control+computer analysis

Optical Calibration   System


Test Speed

<2mins for each   time

Outer dimension


Net Weight



Main Features:

1)Mie Scattering Theory

2)Highly efficient-cost model, semi-automatic key-operation.

3)Full built-in integrated dispersion system, contains Ultrasonic stirring, ultrasonic dispersion and cycling system, prevent large particle sediment in the pipe.

4) Unique unconstrained free fitting technology, make particle analysis not restricted by any function, truly reflect particles distribution, ensure the good accuracy.

5) Converging light Fourier transform light path, efficiently improve resolution ratio of sub-micron particles.

6)Main& auxiliary detectors are log-shaped, guarantee the effective capture of the scattered signal.

Software Function:

1, Analysis Mode

Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. meet different demands of particle size statistic in different industries.

2, Statistic Method

Volume Distribution, Quantity Distribution

3, Statistic Comparison

Several Testing Results of samples

Different batches of samples testing result,

Samples before and after processing,

Test result of samples in different time.

4, User-defined Analysis

Figure out percentage according to the particle size

Figure out particle size according to the percentage

Figure out percentage according to the particle size range

Meet demands of representation of particle test in different industries.

5, Test Report

Word, Excel, Photo( Bmp), Text etc.

6, Multi-language Support

English (Others are available)

7, Intelligent Operation Mode

Automatically control water inflow, dispersion, test and analysis.

Better Repeatability after remove human-factor



PSA2000E is widely used for cement, ceramic, medicine, emulsion, dope, dye, padding, chemical products, catalyst, drilling fluid, abrasive, lubricant, braize, cell, germ, food, additive, pesticide, explosive, graphite, photosensitive material, fuel, ink, metal and nonmetal powder, calcium carbonate, kaolin, water-coal-slurry and other powder materials.

Operation Interface:

Operation interface

Run the software, access control systems interface, manually start the sample testing.

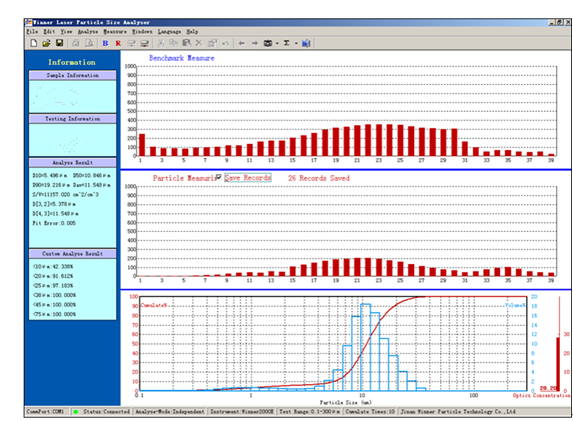

Testing analysis interface and report

After completed test, according to requirement to select records, Average result will be calculated, system generate analysis records form. When test in automatic mode, without data processing, the system automatically get analysis report and save the test records after a comprehensive analysis.



Adopt Patents Technology:

Optical bench design is protected by patent No.- ZL 2014 2 0378380.8,

MIE scattering principle application patent is protected by patent No.- ZL 2013 2 0812021.4.

Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.

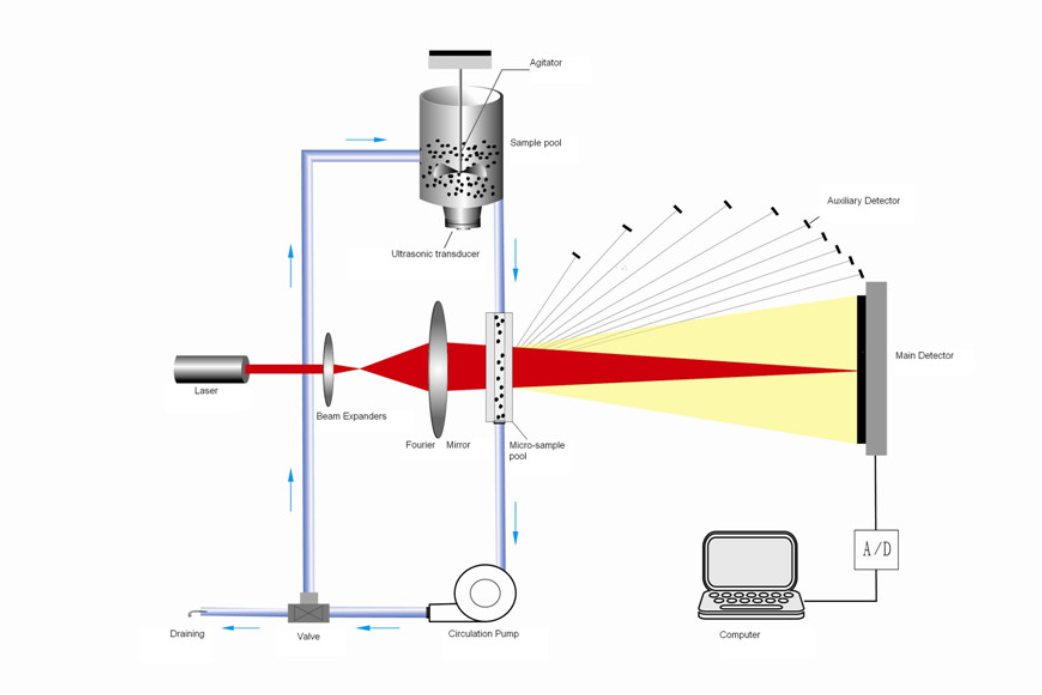

Instrument scheme:
