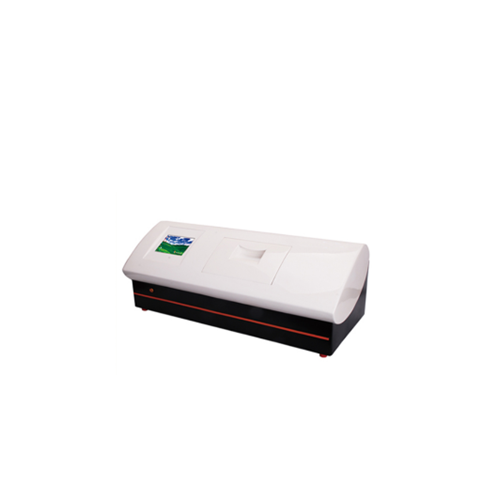

Auto Digital Polarimeter

Auto Digital Polarimeter
Model: PT-P810/PT-P850/PT-P810 Pro/PT-P850 Pro

Description
P Series Polarimeter with automatic photoelectric inspection technology, boasts accurate and reliable measurement, convenient operation. By detecting the optical rotation, the density, content and purity of substances can be analyzed and determined. It s widely used in pharmaceutical, petroleum, food, chemicals, flavors, spices, sugar marking and other industries , and universities and research institutes.



New upgraded models: P810 Pro/ P850 Pro adopt brilliant Android system and communication ports, let new models meet FDA CFR21 part 11.

New P810 Pro/ P850 Pro New Characteristics

Adopt a 8 inch TFT touch screen, with the Android system,  let the operating easier.

Meet FDA 21CFR part11.

User ID management function. Users ID are available for adding, deleting and jurisdiction setting.

Timing measuring and graphic display function, displaying the samples optical rotation changing dynamic process.

8GB room for data storage.

Classify and synchronous result searching function is convenience for users result searching.

3 USB port for U-Disk, keyboard mouse connecting. And WiFi for connecting printer. Let operating much easier.

Feature

Peltier Temperature Control

The Peltier system automatically controls the sample temperature in the max range from 10 °C to 50 °C.

User Calibration System

Additional Standard polarization tubes with software for calibration by user.

Large Color Touch Screen

Large color touch screen display and innovative software interface give extremely convenient device operation and data acquisition. P810/P850 adopt a 5.6inch touch screen, P810 Pro/ P850 Pro adopt 8inch touch screen.

LED Light Source

High brightness LED lights with service life exceeding 100000 hours. To

void the light source exchanging.


Technical Parameters

Model

PT-P810

PT-P850

PT-P810 Pro

PT-P850 Pro

Measuring range

±89.99°Arc; ±259°Z

Measuring Model

Optical Rotation; Specific Rotation; Concentration; Sugar   Degree

Min. reading

0.001°(optical rotation)

Accuracy

±0.01º (-45º≤ optical rotation +45º);

±0.02º ( optical rotation<﹣45º or optical rotation>﹢45º)

Repeatability (standard   deviation)

0.002°(optical rotation)

Min. Transmittance

1%

Light Source

LED

Wavelength

589.3nm LED

Temperature  Control

No

Peltier

No

Peltier

Temperature Control Range


15℃~30


10℃~50

Temperature Control Accuracy


0.3


0.3

Communication Port

USB; RS232

USB; RS232

USB×3,RS232Wi-Fi

USB×3,RS232Wi-Fi

Data Storable

1000

1000

8GB

8GB

21CFR Part 11

No

No

Yes

Yes

Display

5.6inch

5.6inch

8inch

8inch

Sample Cell

Up to 200mm

Up to 200mm

Up to 200mm

Up to 200mm

Graphic

No

No

4hours

4hours

Power

220V AC (±10%) 50Hz

220V AC (±10%) 50Hz

220V AC (±10%) 50Hz

220V AC (±10%) 50Hz

Calibration System

Option

Option

Option

Option
