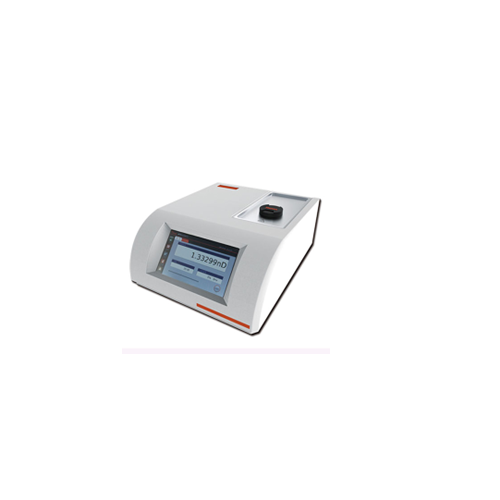

Auto Digital Refractometer

Auto Digital Refractometer
Model: PT-A670 / PT-A630

Description
A670/A630 Automatic Refractometer adopts high-performance CCD light-sensitive part, it can automatically measure the refractive index(nD) of transparent, translucent, dark, viscous and other types liquid sample, also can measure sugar degree(Brix) of sugar solution. It
s accurate, reliable, fast, easy operation. Full compliance with FDA 21CFR part.11. A670 innovative use of cloud service systems, all the data from instrument can update to cloud server, especially for group company or government customer, automatic refractometer has a wide range of use, within the field of factories, university and related scientific research institute, petroleum, oil, pharmaceutical, paints, food, daily chemical, sugar and geological prospecting industries.

Characteristics

Completely meet the requirements of user ID classification & tracking, E-signature, and Data tamper-proof, which listed in FDA 21CFR part.11.

High measuring resolution up to 0.00001(nD)/0.01%(Brix) (A670 only).

Peltier accurate temperature control system is built-in, accuracy up to 0.02.

Measuring prism is made of high hardness sapphire glass, of excellent properties against corrosion and scratches, free for clean and durable.

High-resolution CCD detector offers automatic measurement, avoiding personal errors, having higher accuracy; transparent, translucent liquids or ropiness liquids samples are all available.

Feature

Multiple Samples Suitability

Automatic Refractometer is widely used on kinds of industries, it is one of the most common instruments in the oil industry, pharmaceutical industry, paint industry, food industry, daily chemical industry, sugar industry, geological exploration or institutions.

Perfect Measuring Prism

Measuring prism is made of high hardness sapphire glass, of excellent properties against corrosion and scratches, free for clean and durable.

High Performance CCD Sensor

High-resolution CCD detector offers automatic measurement, avoiding personal errors, having higher accuracy; transparent, translucent liquids or ropiness liquids samples are all available.

Ultra Long Life Light Source

LED cold light source with the long working life more than 100000 hours

High brightness LED light source with service life more than 100000 hours.

7-inch color touch screen with Android system and 4GB RAM let methods and

data expanding excellent.

2 x USB, 1 x RS232, 1 x Ethernet, can be easily connected, printer and network to

facilitate users to export data or backup.

Technical Parameters

Model

PT-A670

PT-A630

Refractive index measuring   range (nD)

1.30000-1.70000

1.3000-1.7000

Measured value error (nD)

±0.0001

±0.0002

Measurement resolution (nD)

0.00001

0.0001

Scope of sugar solution mass fraction (Brix)

0-100%

0-100%

Measured value error (Brix)

±0.1%

±0.1%

Measurement resolution (Brix)

0.1%/0.01%

0.1%

Temperature control mode

Peltier

Peltier

Scope of temperature measuring

0-100

0-100

Temperature control range

5-80

10-50

Temperature control accuracy

±0.02

±0.1

Interface

RS232/USB/SD card/U disk/Internet/wi-fi

RS232/USB/SD card/U disk/Internet

Data storage capacity

4GB

4GB

Display modes

7 inches, TFT touch screen

7 inches, TFT touch screen

Power supply(Power adapter)

110V~240V(12V,10A)

110V~240V(12V,10A)

Power

45W

45W

Net weight

12kg

12kg

Dimensions

365mmX300mmX150mm

365mmX300mmX150mm
