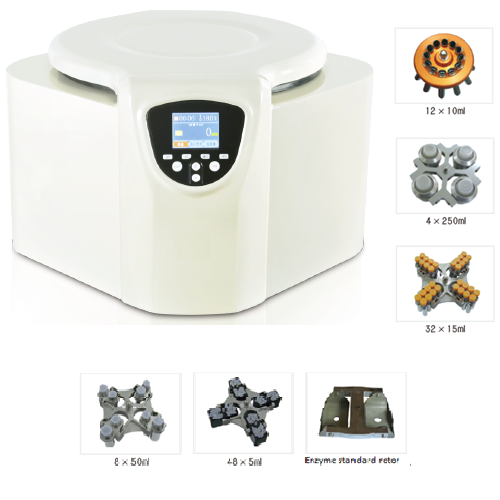

Table type Low speed Multi-place-carrier Centrifuge

Product ID:TD6 /TDZ6-WS

Features

1.         The design of the whole machine is in line with the ergonomics, with streamlining sculpt. With a complete steel structure and a stainless-steel centrifuge cavity, it is safer, better looking and more efficient.

2.         Microcomputer-controlled, with a TFT true-color LCD wide-screen touch monitor/digital indicator to meet different customer's requirement.

3.         Variable-frequency brushless motor that is maintenance and dust-free to achieve quiet and clean operation.

4.         10 kinds of speed-up and speed-down options. Can store 20 user program which can be directly used by the user. The program previously used will be running when the machine is started.

5.         With a motor gate lock mute mechanical & electrical integration.



Technical parameters

Model

TD6

TDZ6-WS

Max Speed(r/min)

6000

6000

Max RCFg)

5140

5140

Max Capacity

4×250ml

4×100ml

Time range

0-99h59min

Total power

500w

Noise

≤65dB

Power

AC220V 50Hz

Weight

35kg

Dimension(L×W×H)

600×540×360mm



Rotor parameters

TD6

Max (r/min)

Max. RCF (×g)

Max. Capacity (ml)

Angle   rotor

6000

5140

12 × 10ml

Swing   bucket rotor

5000

4400

16× 15ml

4000

2810

24 × 10ml

4000

3290

4 × 250ml

Adaptor

/

/

8 × 50ml

/

/

24 × 15ml

/

/

32 × 10ml

/

/

40 × 5ml

Swing   bucket rotor

5000

4600

4 × 50ml

5000

4800

4 × 100ml

Swing   bucket enzyme standard plate rotor

4000

2360

2×2×96holes



TDZ6-WS

Max (r/min)

Max. RCF (×g)

Max. Capacity (ml)

Angle   rotor

6000

5140

12 × 10ml

Swing   bucket rotor

5000

4600

4 × 50ml

5000

4800

4 × 100ml

4000

2810

8 × 50ml

4000

2810

32 × 15ml

4000

2810

32 × 10ml

4000

2940

48 × 5ml/2ml

4000

3100

76 × 5ml/2ml

Swing   bucket enzyme standard plate rotor

4000

2360

2×2×96holes
