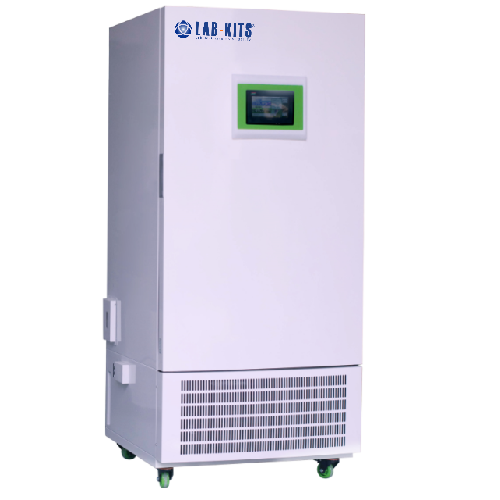

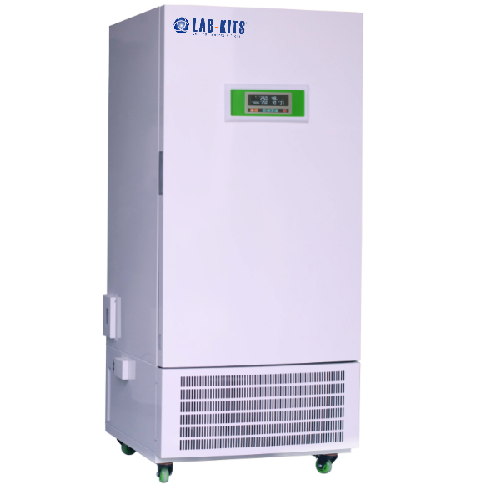

Medicine Stability Testing Chamber

Product ID:TC-LDS-Series

Features

Dual refrigeration system.

Imported compressor with self-developed compressor cooling system, extend service life of the compressor.

Imported humidity sensor, ensuring high accuracy of humidity.

PID control for temperature and humidity, more accurate, easy menu operation interface.

Over-temperature alarm system: automatically stop working when exceeded the limit temperature and send out audible and visual alarm, ensure experiments run safely.

Large LCD screen to display more data at same time.

Newest multi-segment programmable control technology for temperature and humidity, high precision. With multiple programs and multiple cycles, each cycle is divided into 30 segments, each segment contains 99 hours and 99 minutes of cycle steps, it can happily meet almost all the complicated experiment process.

Equipped with JAKEL circulation fan, unique designed air duct for good air circulation, ensuring good temperature uniformity inside.

Equipped with built-in stainless-steel water tank at the bottom of equipment to supply water by pump for the humidification tank.

Equipped with spare temperature control which ensures the product work normally even the main temp. control failed (for heating).

Equipped with printer which can record and print the operating parameters at any time.

Mirror stainless steel chamber, adjustable shelf.

The chamber is equipped with a power socket and UV lamp for sterilization.

Double door design. Tempered glass inner door for clear observation. The outer door adopts magnetic seal design, good sealing performance.

Safety Device

Over temperature protection

Compressor over current protection

Over compressing protection

Water shortage protection

Heater overheat protection

Audible and visual alarm system



Specifications

Model

TC-LDS-175Y-N/ TC-LDS-175T-N

TC-LDS-275Y-N / TC-LDS-275T-N

TC-LDS-375Y-N / TC-LDS-375T-N

TC-LDS-475Y-N / TC-LDS-475T-N

TC-LDS-800Y-N / TC-LDS-800T-N

TC-LDS-1075Y-N / TC-LDS-1075T-N

TC-LDS-175GY-N / TC-LDS-175GT-N

TC-LDS-275GY-N / TC-LDS-275GT-N

TC-LDS-375GY-N / TC-LDS-375GT-N

TC-LDS-475GY-N / TC-LDS-475GT-N

TC-LDS-800GY-N / TC-LDS-800GT-N

TC-LDS-1075GY-N / TC-LDS-1075GT-N

TC-LDS-175HY-N

TC-LDS-275HY-N

TC-LDS-375HY-N

TC-LDS-475HY-N

TC-LDS-800HY-N

TC-LDS-1075HY-N

Temperature & Humidity

Temperature & Humidity & Light

Temperature & Light

Temperature Range ()

0~65

Without Illumination:4~50

With Illumination:10~50

Temperature Fluctuation

±0.5

Temperature Uniformity   ()

±2

Humidity Range (RH)

30~95%

None

Humidity Stability (RH)

±3


Temperature Resolution ()

0.1

Illumination (LX)

None

0~6000 adjustable

Illumination Difference((LX)


≤±500

Timing Range

1~99 hours/period

Temp. and Humidity adjusting

Balance temperature and humidity adjusting

Balance temperature adjusting

Cooling System

Imported compressor

Controller

Y: Programmable (LCD display)

T: Programmable (touch screen)

GY: Programmable (LCD display)

GT: Programmable (touch screen)

HY: Programmable (LCD display)

Sensor

PT100

Capacitance sensor

PT100

Ambient Temperature

RT+5~30

Power Supply

AC 220V±10% ,50HZ

Power Rating(W)

1400/1950/2600/2800/3000/3200

1650/2200/2700/2900/3100/3300

1300/1750/2400/2600/2700/2800

Chamber Volume(L)

175,275,375,475,800,1075

Chamber Size(W×D×H) mm

450×420×930

580×510×935

590×550×1160

700×550×1250

965×610×1370

950×700×1600

Shelf

3

Printer

Yes

Safety Device

Compressor overheating and over pressure   protectionFan overheating protection, Over temperature protection,   Overload protection, water shortage protection
