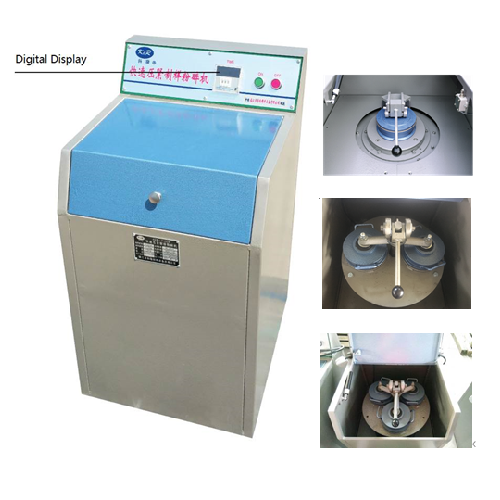

Fast compaction Sample Pulverizer

Fast compaction Sample Pulverizer
Order No.: CSI-F100A/ CSI-F100B/ CSI- F200A/CSI-F200B

Summary

This machine is specially used in smashing and grinding metal and non-metallic minerals of certain hardness, uniform and fine particle size, the sample after smashing and grinding could directly be used to analyze and test.



Main feature

CSI-F100A, CSI-F100B, CSI- F200A, CSI-F200B, CSI-F400A, CSI-F400B fast compaction device, could compress material hopper fast, safe, reliable and convenient.

Grinding material hopper leak proof structure, dry method or wet process grinding there aren’t samples losing.

The whole machine sealed design, electrostatic spraying, and conforming to the environmental protection requirement.

Digital display control time, electrical machine specially made, longer service life.

Vibration-absorptive door mat is at the bottom, it don’t need to be fixed.

CSI- F100B,F200B,F400B are all equipped with industrial vacuum cleaner, high efficiency of dust removal, low noise, safe and reliable, quickly plug in dust absorption port, easy to use.



Main technical parameters

Model

Sample

Loader

Qty.

Load Capacity

 (g)

Sample Supply

Size

(mm)

Produced

Sample

Size (mesh)

Working

Period

 (min

Cont-rol

Compression way

Motor power

Power voltage

Hopper

material

Dimensi-on (mm)

CSI -F100A

-F100B

1

150

20

80-200 mesh

<2

auto

Fast compression

1.1kw

380V

high manganese steel, chrome steel, tungsten carbide   optional

570 x 520 x 890

CSI –F200A

–F200B

2

2x150

20

80-200 mesh

<2

auto

Fast compression

1.1kw

570 x 520 x 890

CSI –F400A

–F400B

1

400

20

80-200 mesh

<2

auto

Fast compression

1.1kw

590 x 670 x 970
