High Throughput Closed Microwave Digestion/Extraction

High Throughput Closed Microwave Digestion/Extraction

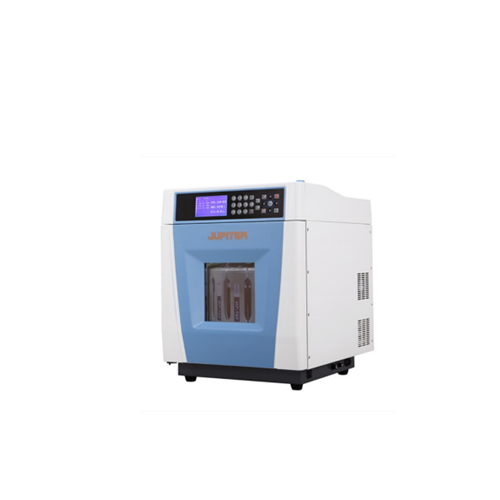

Model: Jupiter B

Feature

□ Safety and convenient in operation, high in efficiency and durable in use

R Satisfy the requirements of different samples' digestion / extraction processing.

□ Up to 12 vessels high-throughput processing capacity;

□ Exclusive patented multifunctional safety bolt design, instead of explosion-proof membrane and other consumables

□ Aerospace composite fiber outer vessel-the highest level of security measures;

□Small volume VS big chamber, which is advance in industrial design and provides perfect experience;

□ Free lifetime warranty to the core components-magnetron of the microwave Digestion System;

□20 years of industry experience with no life injury;

Technical Parameters

Power	220-240 VAC 50/60Hz 8A
Microwave frequency	2450MHz
Installed power	1800W
Maximum output power	1300W，non-pulse continuous automatic variable frequency control
Turntable design	Load 12 JP-100 closed digestion vessels at same time (standard configuration is 10 vessels
Pressure measurement and control system	Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa
Temperature measurement and control system	High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃
Outer vessel material	Explosion-proof outer vessel made of aerospace composite fiber
Inner vessel material	Modified TFM material
Software	Simplified JUPITER-B apply JSb software。5 inch screen display and up to 50 methods can be stored。
Chamber exhaust system	High-power anticorrosion axial fan, exhaust speed: 3.1 m3/min
Operating ambient temperature	0-40 °C
Working environment humidity	15-80%RH
Whole physical size	450600620mm (Width x Depth x Height)
Net weight:	42 KG
