Recirculating Chiller

Recirculating Chiller

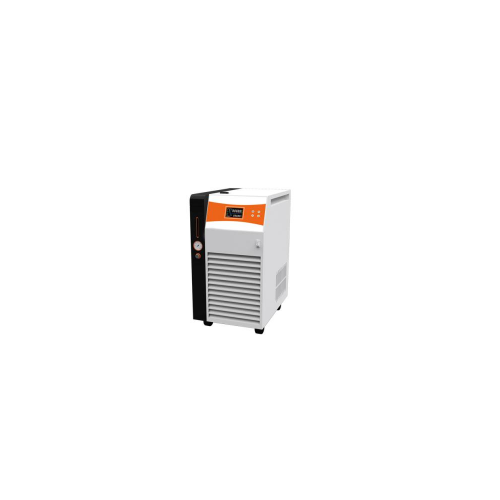

Model: PT-FC1200

Feature

Cooling system adopt TECUMSEH compressor in order to ensure cooling efficiency and reduce noise.

PID temperature controlling technology is adopted. Cooling method is not the traditional stat-stop type, EEV technology improve the stability.

Over-temperature protection and auto-alarm function is used in refrigeration control system to avoid damage temperature medium caused by abnormal liquid temperature value.

Water level observation window and automatic water level detection device, automatic alarm when low liquid level.

Water current detection device is adopted. When external cycle closed or blocked, internal cycle will be switched automatically.

High performance circulating water pump guarantee the long-time continuous running, and good sealing avoid leakage. The pressure of pump is 0-1.5 par, adjustment is available by rotary knob. Pressure value is displayed.

Color LCD screen display more running data and dynamic identifier. Easy to monitor

Technical Parameters

Temperature control range

5 °C ~ 40 °C

Temperature control

PID

Temperature stability

±0.3 °C

Temperature sensor

PT100

Display resolution

0.1 °C

Pump flow rate

20L/min

Cooling capacity

1.2Kw

Refrigerant

R134a

Pump capacity Pressure

0.35 bar

Filling volume liters

8L

Dimensions L x W x H (cm)

55 x 40 x 65

Power supply

220VAC±10% 50Hz
