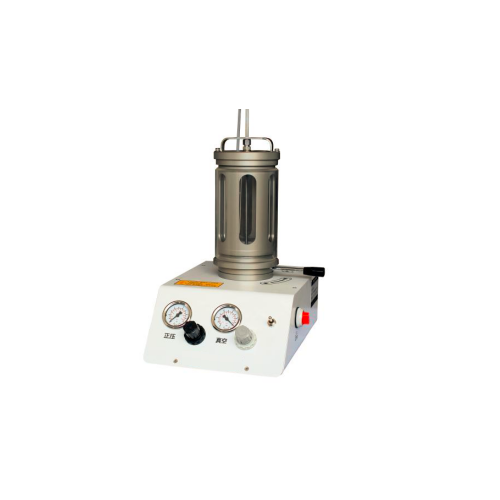

Portable pressure sampler

Overview
BYQ-1 portable pressure sampler is a device used to assist the sampling of high-viscosity samples, and can be used for auxiliary sampling of portable oil particle counters. The pressure sampler has a built-in pressure pump, which can directly switch between positive and negative pressure, It can store and maintain the pressure for a long time, and has the advantages of reliable structure and stable performance. The BYQ-1 portable pressure sampler is easy to operate, has a wide pressure range and is widely used.

Features:

1. Built-in pressure pump, rapid pressure rise;

2. Positive and negative pressure can be switched, with strong pressure holding capacity;

3. It can be used for the injection of high-viscosity oil samples, which improves the viscosity of the samples detected by the portable particle counter;

4. Can perform negative pressure degassing function to facilitate the removal of bubbles after the sample is shaken;

5. Built-in pressure sensor, set pressure value arbitrarily, high degree of intelligence;

6. Mechanical and computer models are available;

7. Compact structure, small size, light weight and easy to carry.

Technical parameters:

1. Positive pressure range: 0-600kPa

2. Range of negative pressure: 0-80kPa

3. Working temperature: 10~40℃

4. Power supply: AC 110-220V, 50/60Hz, ≤120W
