DO Meter

DO Meter
Model: ELE-716

Introduction:

Measurement mode of Dissolved oxygen has the function of automatic temperature compensation, automatic salinity compensation and manual air pressure compensation.
New polarographic type dissolved oxygen electrode can measure temperature, salinity and dissolved oxygen simultaneously, equipped with special dissolved oxygen electrode calibration set, polarization only for 3~5 min.
Built-in microprocessor chips, intelligent functions such as automatic calibration, data storage, function set-up, automatic power-off and low voltage display.
Combined diaphragm cap, replaceable sensitive membrane, screw new diaphragm cap to electrode, easy to use.
Meter meets IP57 waterproof rating, equipped with portable case.

Specifications:

Category	Product Name	Basic features and specifications
Dissolved Oxygen	Measuring range	(0 ~ 40.00) mg/L(ppm) (0 ~ 200.0) %
	Resolution	0.1/0.01 mg/L(ppm) 1/0.1 %
	Accuracy	Meter: ±0.10 mg/L, Overall: ±0.40 mg/L
	Response time	≤30 s (25°C, 90%response)
	Residual current	≤0.1 mg/L
	Temp. compensation range	(0 ~ 45) °C(automatic)
	Salinity compensation range	(0 ~ 45) ppt(automatic)
	Atmospheric pressure compensation range	(66 ~ 200) kPa (manual)
	Automatic calibration	Air saturated by water; water saturated by air
	Electrode type	Polarogram type
Other Technical Parameters	Data storage	200 groups
	Storage content	Series number, measuring value measuring unit and temperature,
	Power	Two AA batteries (1.5V x2)
	Size and weight	meter:(65×120×31)mm/180g；Suitcase: (360×270×76) mm/1.6Kg
	Quality and safety certification	ISO9001:2000, CE and CMC
Working Condition	Environment temperature	5 ~ 35 °C(0.01grade)
	Environmental humidity	≤85%
	IP rating	IP57 Dustproof and waterproof

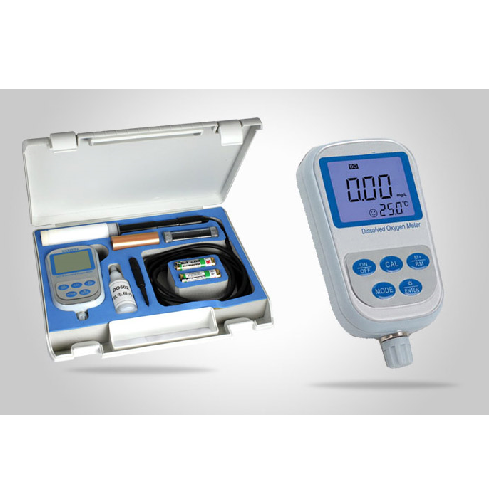

Standard kits:

1. Model ELE-716 DO meter	1unit
2. DO500 DO electrode	1pc
3. DO503 membrane cap (DO electrode use)	3pc
4. DO502 DO electrode inner solution (30mL)	1bottle
5. Cathode polishing paper	2pc
6.Screw driver	1pc
7. Spare AA batteries	2pcs
8. Operation manual	1pc
9. Carrying case	1unit
