Headspace Injection System

Introduction:

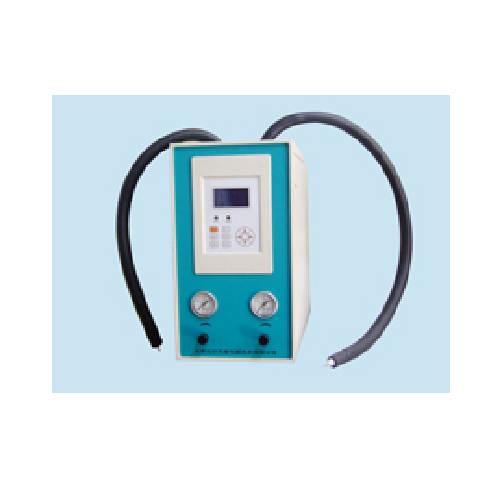

GC-JP-6010 is an automatic injection system with new designing concept

Features:

1.        High-pressure injection system without 6-way injection valve; so there is no problem for the valve-memory effects.

2.        Spring quartz capillary pipes are adopted for transporting the sample; thus to avoid the abnormal effects on sample analysis.

3.        With high precision & low repetition error.

4.        Auto anti-reverse-blow function to prevent cross infection between different samples.

5.        Microprocessor controlling with timing function. Pressure adding, sample feeding, analysis, and anti-reverse-blow are automatic.

6.        No need to modify the GC system.

Technical Parameters:
1. Injection Bottles
　Quantity of Bottles: 9
　Material of Bottles: Neutral Glass
　Volume of Bottles: 10ml, 20ml or other volumes
2. Temperature
　Sample Bottles: RT+15℃～150℃
　Sample Feeding Line: RT+15℃～150℃
3. Controlling Program
　Outer Controlling: 3
　Programming Grades: 4-grad programming
