Microwave Digestion System
Microwave Digestion System

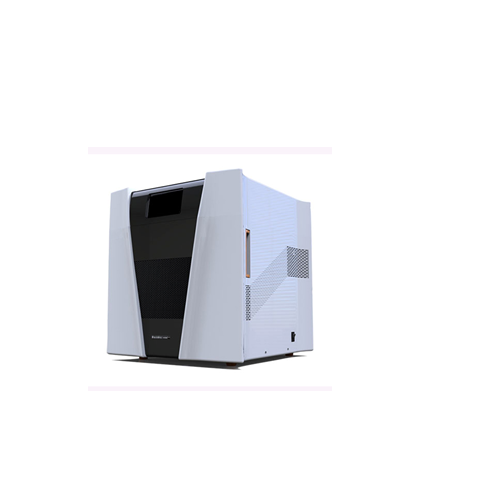

Model: TANK BASIC / TANK PRO
Description
TANK Microwave Digestion System adopts the international advanced double magnetron frequency microwave heating system and realizes the high power microwave balanced magnetic field safety heating.
Microwave Reaction System has been widely used in food, textile, plastic, geological, metallurgical, coal, biological medicine, petroleum chemical industry, environmental monitoring, sewage treatment, battery manufacturing, cosmetics, etc.
Feature
· Multiple safety protection function.
· Optical fiber temperature control system.
· Double magnetron variable frequency control system.
· Built-in method library (30 methods) and the methods could be programmed.
Technical parameters
Model | TANK PRO TANK BASIC |
Cavity | 48L Resonant Cavity |
Digestion method | TANK PRO：50 preinstalled methods, programing 100 methods |
temperature measurment range | TANK PRO：-40°C - 305° C |
Temperature accuracy | ±1°C |
Pressure accuracy | ±0.01Mpa |
Temperature control method | Optical Fiber |
Max.pressure | TANK PRO：80Mpa C |
Vessel volume | 100mL |
Vessel quantity | 12 Vessels |
Cooling method | forced air cooling |
TEFLON coating | TANK PRO：10 layer C |
Interface | USB, RS232 |
Display | 7" LCD screen |
Control model | touch screen |
Power supply | 220VAC±10% 50Hz |
Power output | 1600W |
Dimensions | 520mmx593mmx660mm |
Weight | 67Kg |
