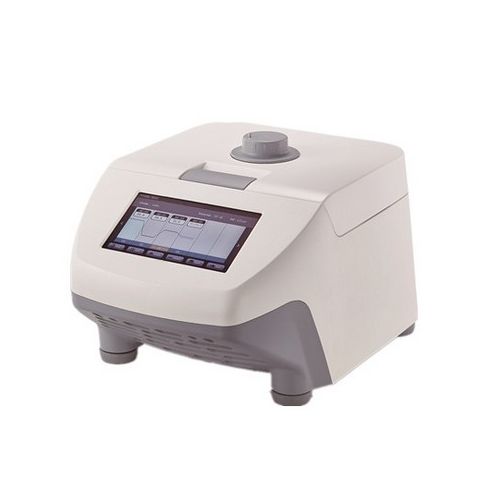

PCR Thermocycler

PCR Thermocycler
Model ID: TC1000-G/S

• Reliable heating/cooling elements and precise temperature control

• Unique design of block ensures the temperature uniformity and repeatable results

• 7 inch Large color touch panel screen for easy programming with user friendly software

• High performance DSP and temperature control

• Fast heating and cooling rate

• Large user program storage



Specifications

TC1000-G

TC1000-S

Sample Capacity

96X0.2mL PCR tube, 8X12 PCR plate or 96 well plate

Heating Temperature Range

4-105

Lid Temperature Range

30-110

Temperature Display Accuracy

±0.1

Temperature Control Accuracy [at 55]

±0.3

Temperature uniformity[at 55]

<0.3

Max. Heating/Cooling Rate

5/Sec

3/Sec

Gradient Temperature Setting Range

30-99

/

Gradient Range

1-42

/

Adapter block material

aluminum

Display

7” LCD 800x480

Input

Touch panel

User defined file system

Max. 30 segments 99 cycles max. 16   folder and 16 files each folder

Power off protection

Yes

Power Supply

100-120V/200-240V,50/60Hz

Dimension [D×W×H]
  ( without the heating block)

280x370x250 mm

Weight

11kg
