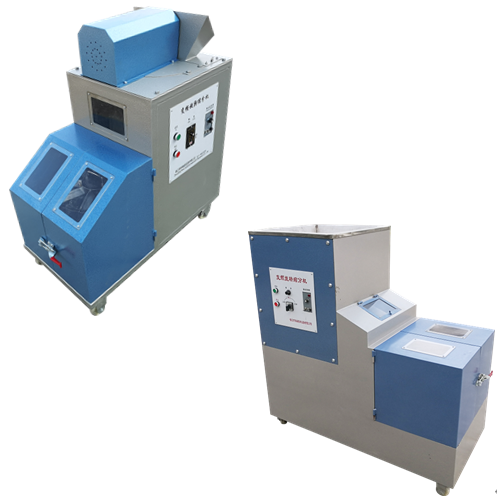

Variable frequency rotate reduction and division instrument

Variable frequency rotate reduction and division instrument
Order No.: CSI-BS600/ CSI-BS500M/ CSI-BS400M

This product is the new type of automatic reduction and division instrument developed according to newest national standard GB474preparation method of coal sample, which is applied to precision automatic splitting of particle sample in coal, iron ore, sinter, pellet, coke, building materials, chemical engineering, etc.

It is widely used in coal , metallurgy, building materials, electricity, the third party inspection and Academy of Science, etc.



Automatically rotate division, division precision degree conforms to the standard requirement.

Standard vibrator vibrate and feeding, feeding uniformly.

Reduction rotary speed could continuously regulate speed, amplitude could be adjustable.

Dividing sample barrels arrange closely, reliable localization, load conveniently.



Technical parameters

Model

CSI-BS600

CSI-BS500M

CSI-BS400M

Reduction particle size

<25-6

<25-6

<13-3

Reduction Ratio

1/2-1/8

1/2-1/8

1/2-1/8

Feed hopper

capacity (kg)

45

40

16

Sampling barrels (kg)

10

5

2

Quantity of Sampling barrels(pcs)

8

8

8

Productivity (kgh)

1800-1200

1800-1200

1200-600

Infinitely rotate speed (r/min)

4-60

4-60

4-60

variable frequency

motor power(kw)

1.1

1.1

0.75

working power supply(V)

380

380

380

Weight(kg)

160

160

100

Dimensions(mm)

1300×620×1300

1300×620×1300

920×460×940

Sealed style

open-type

Whole sealed

Whole sealed
