pH/ISE Meter

pH/ISE Meter
Model: ELE-523

Introduction:

  • Meter      meets with the requirement of international GLP standards. Its features up      to automatic calibration, automatic temperature compensation, data      storage, timing measurement, clock display, RS-232 output, function      setting and self-diagnose etc.

  • There      are three different measurement modes: stable display mode; time      measurement mode; continuous measurement mode.

  • Automatically      recognize 13 kinds of pH buffer solution. User can choose anyone from four      series of standard buffer solutions: Europe & USA series, NIST series,      CHINA series and Self-defined series

  • High      purified water and ammonia added purified water pH measuring mode can be      set up, especially suitable for electric power and petrochemical industry

  • With EH      redox potential measuring mode can directly display ORP value which      against standard potential of hydrogen electrode.

  • There      are 10 kinds of common ions can be selected in the ion concentration      measuring mode, user also can self-define other ions.

  • Can      switch 4 kinds of concentration unit: pX, mol/L, mg/L and ppm.

  • Meter      has the only product serial number.

  • Dustproof      and waterproof meter meets IP54 standards. All sockets are seal protected      by the silica gel caps.

Specifications:

pH

Measuring range

Resolution

Accuracy

Input current

Input impendence

Stability

Temp. compensation range

(-1.999 ~ 19.999) pH

0.1/0.01/0.001 pH

Meter: ±0.002 pH, connect meter with   electrode: ±0.01pH

≤1×10-12 A

≥3×1012 Ω

±0.002 pH/3h

(0 to 100) °C (automatic or manual)

mV

Measuring range(mV/ORP/EH)

Resolution

Accuracy

-1999.9mV ~ 0 ~ 1999.9mV

0.1mV

±0.03% FS

Ion   Concentration

Measuring range

Display unit

Accuracy

Temp. compensation range

0.00 ~ 14.00 pX

pX, mol/L, mg/L, ppm

Meter: ±0.5 % reading(monovalent), ±1.0 %   reading (bivalent)

0 to 60 °C (automatic or manual)

Temperature

Measuring range

Resolution

Accuracy

-10°C~ 110°C

0.1°C

5~ 60°C range: ±0.4°C other range: ±0.8°C

Other   Technical Parameters:

Data storage

Storage content



Power

Communication connector

Size and weight

Quality and safety certification

900 groups

Measuring value series number, measuring   value, temperature, ATC or MTC state, measuring date and time

DC9V/300mA

RS232

160 × 190 × 70mm/880g

ISO9001:2008, CE and CMC

Working   Condition

Environment temperature

Environmental humidity

IP rating

5 ~ 35 °C(0.01grade)   15 ~ 30 °C(0.001grade)

≤75%

IP54 Dustproof and waterproof



Standard kits:

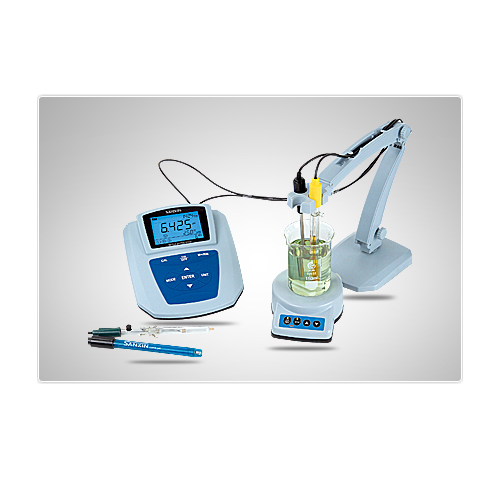

1.   Model ELE-523 pH/ISE meter

1set

2.   Model 602 flexible electrode holder

1pc

3.   Model 901 intelligent stirrer

1set

4.   201T-M plastic pH/ATC three-in-one combination electrode

1pc

5.   2503-C glass pH combination electrode

1pc

6.   MP500 temperature electrode

1pc

7.   Model 6213 double salt bridge reference electrode

1pc

8.   pH calibration buffer solution (pH4.00, pH6.86, pH9.18/50ml)

1btl/each

9.   9V power adapter (meter use)

1pc

10.   6V power adapter (stirrer use)

1pc

11.   B628 stirring bead

3pc

12.   RS-232 communication cable

1pc

13.   MP523 communication software disk

1pc

14.   Operation manual

1unit

15.   Brief operation instruction

1unit
