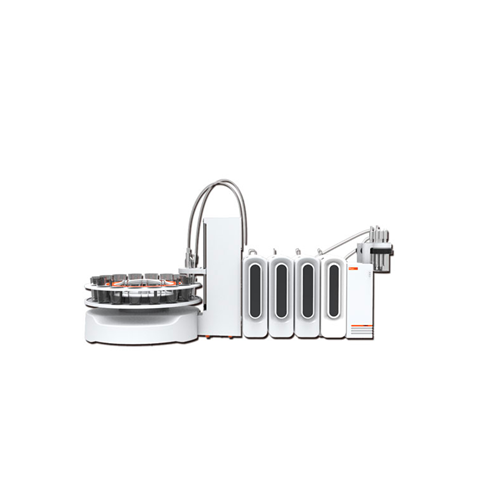

Automatic Titrator

Automatic Titrator
Model: PT-T960 BASIC/PT-T960 PRO/PT-T960 PLUS

Description

Automatic Titrator meet the demand of multi complex liquid inlet automatically. There is no need to add solution manually. With the most secure built-in burette, to avoid contact with harmful chemicals which protect user security; Cloud services , connect via the Ethernet port ,to achieve the sharing between the instrument and Hanon huge database. Lead the laboratory instruments to Cloud generation.



Characteristics

1. Multi-Channel modular combination, combine up to 4 dosing units & 6 channels work at   same time.

2. 3 standard burettes (5ml/10ml/25ml) available for options according to different application

3. Unique built-in dosing unit to avoid the harmless chemical leak.

4. Multiple self-checking function to avoid mis-operating.

5. Flexible application edit functions, users can storage your own titration mode according to your testing and use the storage mode next time with one click.

6. RS232/USB port, with networked CAN bus communication functions

7. Can work with external 16-samples auto-sampler, making the multitasking operation much easier.



Features

Mixed synchronous inlet system:

The world's leading Mixed synchronous inlet system with 4-channel sample inlet simultaneously, supports expand up to 6 channels. Totally automatic in add titrant, any combination of additives or auxiliary agents.



Built-in burette:

The most secure built-in burette, burette built in the instrument and can be observed though the window during the test to avoid the harmless chemical leak. Burette volume is optional:5ml/15ml/25ml



Cloud Service:

With ethernet interface, it can storage the database to the cloud server. Lead the laboratory instruments to Cloud generation.



Titration platform diversification:

Flexible to work with independence titration stand or 16 auto-sampler, multi-tasking operating through 16 auto-sampler can be fully automated, the whole process without staff to monitor, improve the work much more efficiency.

Model

T960 BASIC

T960 PRO

T960 PLUS

MV measuring range

±2000MV

MV measuring Resolution

Resolution 0.1MV



Accuracy   0.1MV

pH measuring range

-20.000PH+20.000PH

pH measurement

Resolution 0.001PH

Accuracy   0.003PH

Temperature measuring range

-5120

Temperature measuring accuracy

±0.1

Interface

2xUSB, RS232, Ethernet

Max titration station

2

4

6

Max liquid filling module

2

4

4

Burette

5ml, 10ml, 25ml

Burette resolution

1/48,000

Time the burette charging

16 seconds (100% charging speed)

PC control




Electrode connector type

mv/pH measurement electrode   connectorreference electrode connector PT1000 temperature electrode   connector

Auto-Sampler

16 positions (Optional)

No

No
